Paul The Programmer

In Lesson 4 I promised to talk about functions, OK then, you asked for it, here we go.

A function acts in a similar way to a bicycle messenger. We send it off with a piece of information; the information is delivered; some processing occurs; and the messenger is sent back with a reply. Unless he’s gone off for pizza or to meet a date. Our functions return results, as a variable (remember them, little boxes of goodies). Take a look at this:

In an earlier lesson we met with Mr Integer, the variable for carrying around whole numbers. In this lesson, I thought it about time I showed you a number of other variable types which carry around values you’ll more than likely want to store and certainly need in your future code.

Firstly, we have the string, which keeps a track of characters, such as names, addresses, zip codes, product descriptions, she is allocated like this

Dim strIsPaulSexy as String

strIsPaulSexy = “NO, Paul has no sex appeal”

if we print out the value of strIsPaulSexy, the computer will tell us NO, Paul has no sex appeal – yeah, thanks a lot.

Then we have Mr Double. He can hold floating point numbers, which are numbers with a decimal place, like Pi or the money in your bank account

Dim dblPi as Double

dblPi = 3.14159265

MsgBox (dblPi * 10 & “cm”)

Run this code and you will get a message box showing you the circumference of a 10cm diameter circle. Remember the difference between an integer and a double. Integers will round up or down to the nearest whole number (e.g. 3.14.. = 3,  or 4.501 = 5)

Then there is the Gemini like Boolean, the True/False variable of two halves. Useful as a switch within our code, making something happen in one position, or ignoring the instructions in another perhaps.

Dim boolIsPaulSexy as Boolean

boolIsPaulSexy = False

If boolIsPaulSexy = True Then

    MsgBox (“Paul has sex appeal”)

End If

The computer, like most ladies, will say nothing.

When we write code that actually works (greatest feeling in the world) we most often want to make a decision or choice. Essentially, in human terms (or Martian, if there are any Martians reading this), we would say “when this happens then do this” or “if this had occurred, do that”. We wrote pretty much the same thing in our code from lesson 7, but like this:-

   If intBoxOfApples = 8 Then

Previously, we saw that you can drive yourself loopy, and repeat instructions over and over again, a time saver once you get it right. But what if you want to stop the loop early because something has happened?

These are called conditional loops. Easy real world definition:

Going with your girl, stopping because you have an argument, getting back together again, another argumental split and so on.

Expanding a bit on the PutAppleInBox subroutine, we can add an IF….THEN…..ENDIF clause (not Santa). We do this to get the routine to “jump” over a few numbers, once a certain number or condition has been reached (my age went from 15 to 18 every Friday night so I could go to the pub):

Sub PutAppleInBox()

Dim intRepeatThisLoop As Integer

Dim intBoxOfApples As Integer

For intRepeatThisLoop = 1 To 10

   If intBoxOfApples = 8 Then

      intBoxOfApples = 10

   End If

   intBoxOfApples = intBoxOfApples + 1

Next

MsgBox ("There are " & intBoxOfApples & " apples in the box")

End Sub

Using the code (above), once intBoxOfApples reaches 8, the code makes intBoxOfApples = 10 and completely misses out 9. This ends the For loop early.

There are many uses of If:

• If only she went out with me
• If only I hadn’t gone out with him
• If only The tooth fairy hadn’t pulled out all my teeth the night I slept with my head under the pillow.

 Let us recap, quickly.

Your writing VBA code, you know where to find the VBA editor, how to create a subroutine, what a variable is and how to get a message box on screen. Not bad for 5 minutes work, it sure took me a lot longer than that to learn it! What were you worried about? VBA is easy.

Now we?re going to learn how to make instructions repeat themselves, we call this a loop. If you have OCD, then this is the Lesson for you. There are a lot of ways to do loops in VBA, the simplest is to say "Do these instructions, repeat this many times". In code we'd write whats called a For ... Next loop, like this

For intLoop = 1 to 10

 ?.Some instruction or other

Next intLoop

So, if we put a loop in our PutAppleInBox subroutine, we get this

Sub PutAppleInBox()

Dim intRepeatThisLoop
Dim intBoxOfApples As Integer

For intRepeatThisLoop = 1 To 10
   intBoxOfApples = intBoxOfApples + 1
Next

MsgBox ("There are " & intBoxOfApples & " apples in the box")

End Sub

Go try it now, modify your previous program, remember to press F5 key to run the code. I changed "There is" to "There are", just to make the sentence look right. Now you've gone loopy too.

You can change the 1 to 10 to any number you like; you can even go backward like this

For intRepeatThisLoop = 10 to 1 step -1

By now, you're probably thinking either

1. This guys a genius and teaches VBA really easily
2. This guys a nutcase and should be committed
3. Lets do another lesson (that's what I was thinking)

Perhaps the most interesting things in any program are the variables. Variables are like little bundles to information, tied to a name that humans can easily understand (we have difficulty remembering 1245642, but we can easily remember NumberOfBloomers)

Imagine you have a box of apples and people can put apples into the box or take them out. Any number they like, at any time. How many apples are currently in the box?

That?s where a variable comes in. A variable will hold the current number of apples (or any other unit, money, time, number of characters for example), and we can ask the computer for this number at any time during our program. You?d think the computer would get fed up asking for the same number a thousand time, but it never does.

Whole numbers (numbers without a decimal point) are called integers (shortened sometimes to int, just to add to the confusion). We create an integer variable like this?

Dim intBoxOfApples as Integer

To add an apple to the box we would write

intBoxOfApples = intBoxOfApples + 1

and guess what, to take an apple out of the box we would write

intBoxOfApples = intBoxOfApples - 1

So a program to put an apple into a box, and pop up a message to tell us about it, would look like this ?

Sub PutAppleInBox()

Dim intBoxOfApples as Integer

intBoxOfApples = intBoxOfApples + 1

MsgBox ("There is " & intBoxOfApples & " apple in the box")

End Sub

To try it out, swap the Aunt Marys Bloomers code from Lesson 3 and run the code once you have typed it in (and debugged it). The result will look like this ?

As you saw during Lesson 3, a program looks a lot like (actually just like) this...

Sub AuntMarysBloomers()

MsgBox ("Aunt Mary wears bloomers")

End Sub

The Sub part acts as a nice neat container for the 'to do' list. We always have to contain the list, otherwise it might run off the screen and get married. Sub is a shortened version of Subroutine (code is nearly all about short things, my wife entirely understands short).

A Sub always ends in an End Sub, otherwise it wouldn't know when to stop. I would have just said ?when the code runs out? but apparently Microsoft never thought of it.

There is another container called Function that we'll come to later. Strangely, they didn?t shorten it to Fun, I think that might have been more accurate.

A Sub always needs a name, or it would never know when to do its job. In this case we called it AuntMarysBloomers. The name can be almost anything you like except for words the computer already uses to do other things. Do not panic. If the computer doesn't like your word it will let you know by not running your code.

 The brackets ( () ) are containers too. They can hold information (often known as gibberish) that we can get the code (we tried to write) to work on.

Confused? Me too. Time for a coffee, doughnut and a lie down by now. Just let it sink in slowly, we have a long way to go.

Next we will learn that programming involves typing. I bet that gave you a start. Yes, sorry but you have to do some real work now. Here is how we write some code.

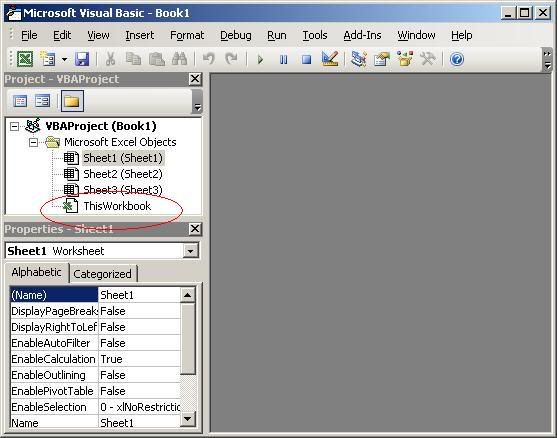

In the editor, you opened it in lesson 2, double click (that is two left hand mouse button clicks – click click) where it says ThisWorkbook

Once you’ve double clicked your left mouse button, you should see this screen

What you’ve done, is create an editable area to write your VBA code in (the bug nest). Were now going to type in some code and run it. Imagine you have an aunty Mary and she wears bloomers. We want our program to pop up a box and tell everyone about Aunt Mary and her bloomers. So we’d type the following

To get this program to run, we press the F5 key (function key) on our keyboard. This will run our first program and pop up a message like this

Oh what joy, didn’t take you long to write your first program. Your flying along now.

So you now know what VBA is, and roughly what it might be able to do. Great. But where do we actually create the list, or code.

Well, the samples I’ll show you on my tutorials are all in Microsoft Excel. Firstly because it’s the first office application on my menu bar (and lazy is my second name), but more importantly screen grab works well so I can show you what I’m doing.

So open up excel…..Pause for effect….Now open up the VBA editor.

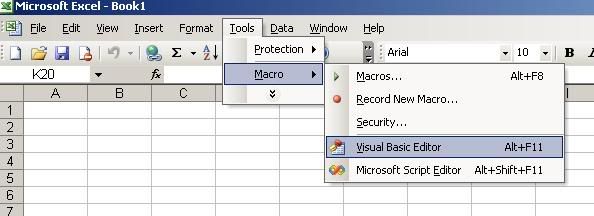

Gasp – shock horror, where is it? Easy, it can be found under Tools > Macro > Visual Basic Editor – see the picture below. Go on click it, I know you want to.

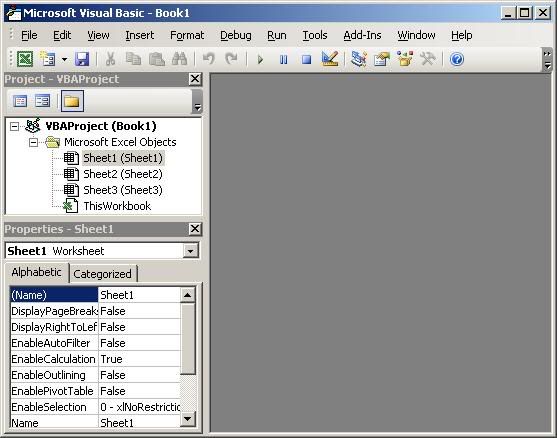

Now you have broken your computer, unless you can see the editor environment that looks like this

In which case congratulations; you now know how to get into the VBA editor. Well done.

VBA is short for Visual Basic for Applications or, as I like to call it, very basic.

VBA is extremely simple to understand and learn, unless your complex, in which case it isn't.

VBA can carry out complex and repetitive tasks, or bugs as most programmers prefer to call them.

VBA cannot carry your shopping home on the bus, or drive your car.

VBA is a computer language, easier to understand than Bulgarian (believe me I am trying to).

VBA - think of it as an ordered shopping list of To Do instructions for the computer, without the eggs, milk and bread.

VBA is built into Microsoft Office programs, like Excel, Word and Access, and it's how you get them to talk with one another. Unless theyve fallen out.

VBA is written using an editor program. This will point out your mistakes. It would also be nice if it corrected them too, but that up to you, my friend.
